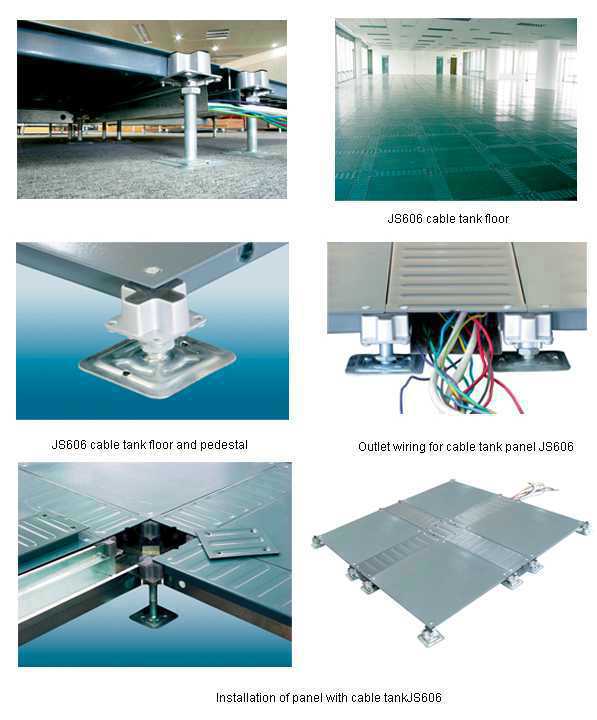

JS506/JS606 Raised Floor with Cable Tank
steel panel with cable tank, panel with corner lock, standard with aluminum pedestal, panel size:500*500*28/600*600*35
JECC Steel Raised Floor with Cable Tank JS506/JS606 for O.A. Intelligent Building:This kind of raised floor with dimension 500*500*28 or 600*600*35 is specially designed for laying cables easily. Due to there are various electric appliances in the O.A. Intelligent Building, such as, computer, air-conditioner, TV, telephone, fax machine, etc, all of them bring many pips and wirings, including strong electricity, weak electricity, water pipe, wirings, net wirings, etc.
JECC Steel Raised Floor with Cable Tank JS506/JS606 for O.A. Intelligent Building:This kind of raised floor with dimension 500*500*28 or 600*600*35 is specially designed for laying cables easily. Due to there are various electric appliances in the O.A. Intelligent Building, such as, computer, air-conditioner, TV, telephone, fax machine, etc, all of them bring many pips and wirings, including strong electricity, weak electricity, water pipe, wirings, net wirings, etc.
steel panel with cable tank, panel with corner lock, standard with aluminum pedestal, panel size:500*500*28/600*600*35
JECC Steel Raised Floor with Cable Tank JS506/JS606 for O.A. Intelligent Building:This kind of raised floor with dimension 500*500*28 or 600*600*35 is specially designed for laying cables easily. Due to there are various electric appliances in the O.A. Intelligent Building, such as, computer, air-conditioner, TV, telephone, fax machine, etc, all of them bring many pips and wirings, including strong electricity, weak electricity, water pipe, wirings, net wirings, etc.
Type and Specification | |||||||||
Type | Description | Size(mm) | Concentrated Load | Uniform Load (N/m2 ) | Utimate Load(N) | Remark | |||
Lb | N | Kg | |||||||
JS506 | FS700 | Steel Raised Floor with Cable Tank for OA Intelligent Building | 500×500×28 | ≥700 | ≥3115 | ≥318 | ≥12500 | 8850 | Anti-static Carpet Tiles: (1)both imported and domestic products (2)various colors and patterns available |
FS800 | ≥800 | ≥3560 | ≥363 | ≥17000 | 10700 | ||||
FS1000 | ≥1000 | ≥4450 | ≥454 | ≥23000 | 13350 | ||||
FS1250 | ≥1250 | ≥5563 | ≥568 | ≥33000 | 16680 | ||||
FS1500 | ≥1500 | ≥6674 | ≥681 | ≥43000 | 20000 | ||||
FS1750 | ≥1750 | ≥7785 | ≥795 | ≥52000 | 23300 | ||||
FS2000 | ≥2000 | ≥8900 | ≥909 | ≥63000 | 26700 | ||||
JS606 | FS700 | 600×600×35 | ≥700 | ≥3115 | ≥318 | ≥12500 | 8850 | ||
FS800 | ≥800 | ≥3560 | ≥363 | ≥17000 | 10700 | ||||
FS1000 | ≥1000 | ≥4450 | ≥454 | ≥23000 | 13350 | ||||
FS1250 | ≥1250 | ≥5563 | ≥568 | ≥33000 | 16680 | ||||
FS1500 | ≥1500 | ≥6674 | ≥681 | ≥43000 | 20000 | ||||
FS1750 | ≥1750 | ≥7785 | ≥795 | ≥52000 | 23300 | ||||
FS2000 | ≥2000 | ≥8900 | ≥909 | ≥63000 | 26700 | ||||
