Type and Specification | |||||||||
Type | Description | Size(mm) | Concentrated Load | Uniform Load (N/m 2 ) | Utimate Load(N) | Remark | |||
Lb | N | Kg | |||||||
JS601 | FS700 | Raised Floor with Outlet Wiring for O.A Intelligent Building | 600×600×35 | ≥700 | ≥3115 | ≥318 | ≥12500 | 8850 | Anti-static Carpet Tiles: (1)both imported and domestic products (2)various colors and patterns available |
610×610×35 | |||||||||
FS800 | 600×600×35 | ≥800 | ≥3560 | ≥363 | ≥17000 | 20700 | |||
610×610×35 | |||||||||
FS1000 | 600×600×35 | ≥1000 | ≥4450 | ≥454 | ≥23000 | 13350 | |||
610×610×35 | |||||||||
FS1250 | 600×600×35 | ≥1250 | ≥5563 | ≥568 | ≥33000 | 16680 | |||
610×610×35 | |||||||||
FS1500 | 600×600×35 | ≥1500 | ≥6674 | ≥681 | ≥43000 | 20000 | |||
610×610×35 | |||||||||
FS1750 | 600×600×35 | ≥1750 | ≥7785 | ≥795 | ≥52000 | 23300 | |||
610×610×35 | |||||||||
FS2000 | 600×600×35 | ≥2000 | ≥8900 | ≥909 | ≥63000 | 26700 | |||
610×610×35 |

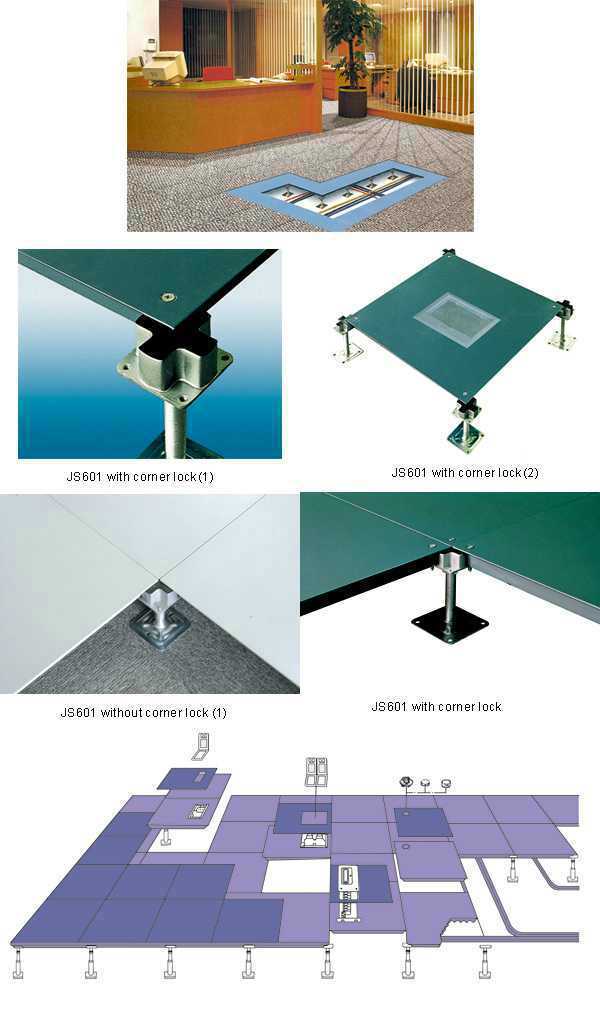

JS601 Steel raised floors
