JS607 Functional Raised Floor

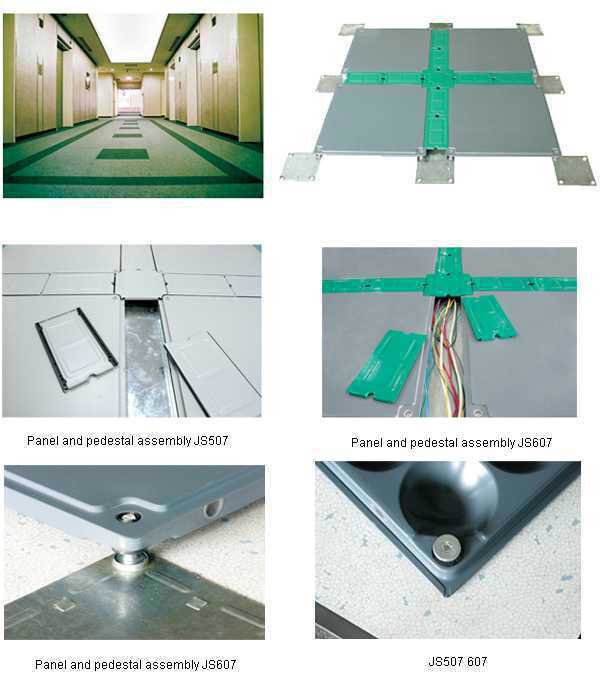

"JECC" Steel Functional Raised Floor with Cable Tank 607 for OA Intelligent Building:
Dimension 600*600*30 is specially designed for conveniently laying wiring, but raised height is very low (Generally, less than 8cm). This kind of panel not only gets the advantages of JS606, but also can lay wiring in the lowest height, meanwhile in the same cable tank, the strong electricity can separate from each other. After installation, wires and pipes can be laid and maintained as long as lifting the cap of cable tank lightly. So when the panels come into market, they attract lots of consumers and enjo...
Dimension 600*600*30 is specially designed for conveniently laying wiring, but raised height is very low (Generally, less than 8cm). This kind of panel not only gets the advantages of JS606, but also can lay wiring in the lowest height, meanwhile in the same cable tank, the strong electricity can separate from each other. After installation, wires and pipes can be laid and maintained as long as lifting the cap of cable tank lightly. So when the panels come into market, they attract lots of consumers and enjo...
"JECC" Steel Functional Raised Floor with Cable Tank 607 for OA Intelligent Building:
Dimension 600*600*30 is specially designed for conveniently laying wiring, but raised height is very low (Generally, less than 8cm). This kind of panel not only gets the advantages of JS606, but also can lay wiring in the lowest height, meanwhile in the same cable tank, the strong electricity can separate from each other. After installation, wires and pipes can be laid and maintained as long as lifting the cap of cable tank lightly. So when the panels come into market, they attract lots of consumers and enjoy high reputation.
Type and Specification | |||||||||
Type | Description | Size(mm) | Concentrated Load | Uniform Load (N/m2 ) | Utimate Load(N) | Remark | |||
Lb | N | Kg | |||||||
JS607 | FS700 | Steel Functional Raised Floor with Cable Tank For OA Intelligent Building | 500×500×28 | ≥700 | ≥3115 | ≥318 | ≥12500 | 8850 | Anti-static Carpet Tiles: (1)both imported and domestic products (2)various colors and patterns available |
500×500×28 | |||||||||
FS800 | 500×500×28 | ≥800 | ≥3560 | ≥363 | ≥17000 | 10700 | |||
500×500×28 | |||||||||
FS1000 | 500×500×28 | ≥1000 | ≥4450 | ≥454 | ≥23000 | 13350 | |||
500×500×28 | |||||||||
FS1250 | 500×500×28 | ≥1250 | ≥5563 | ≥568 | ≥33000 | 16680 | |||
500×500×28 | |||||||||
FS1500 | 500×500×28 | ≥1500 | ≥6674 | ≥681 | ≥43000 | 20000 | |||
500×500×28 | |||||||||
FS1750 | 500×500×28 | ≥1750 | ≥7785 | ≥795 | ≥52000 | 23300 | |||
500×500×28 | |||||||||
FS2000 | 500×500×28 | ≥2000 | ≥8900 | ≥909 | ≥63000 | 26700 | |||
500×500×28 | |||||||||
